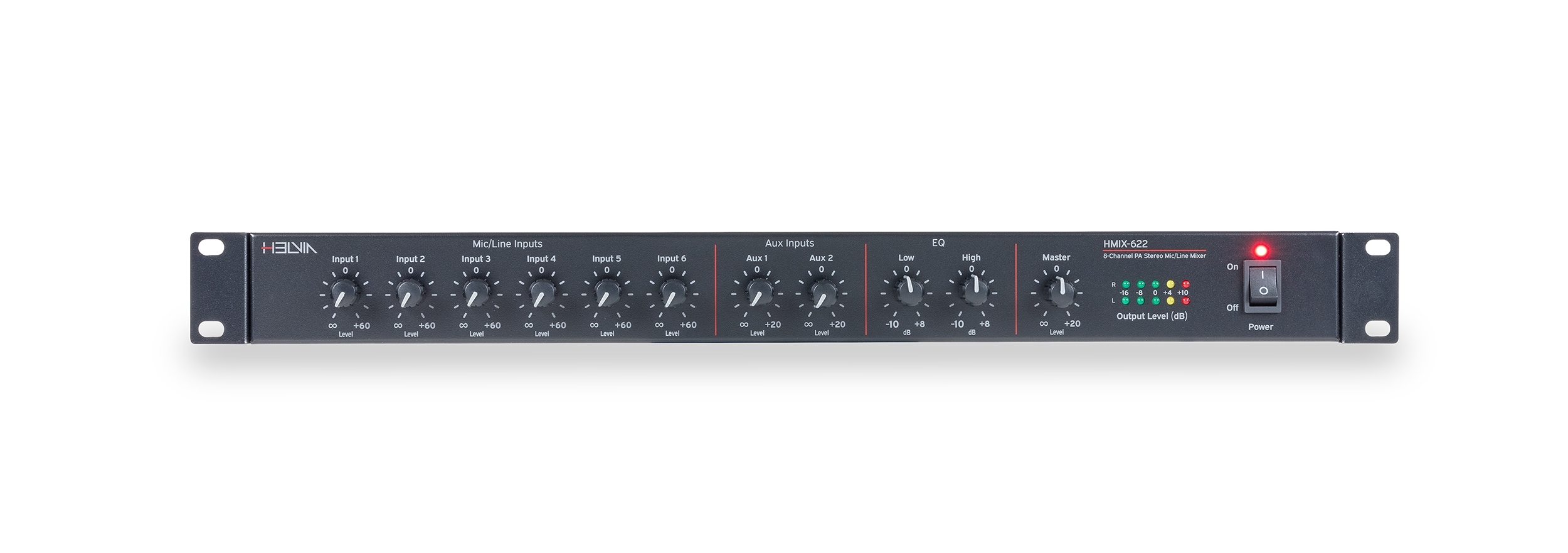

Helvia HMIX-662
Bestelnummer: 14029 Niet op voorraad.Key features
6 Mic/Line inputs
+48V phantom power supply
Priority function (on channel 1) with adjustable threshold
2 Stereo Line Inputs
Stereo Balanced Outputs
Small size in 1 rack unit
DC24V auxiliary power input
Specifications
Mic/Line Inputs 6x Balanced XLR / 1/4” Combo connectors
Aux Inputs 2x L+R RCA
Outputs L+R male XLR, 1/4” Jack, L+R RCA (Line Out)
Controls 6x Mic/Line level, 2x Aux level, Treble (High), Bass (Low), Master
Input Impedance 3.3k Ohms (mic/line), 10k Ohms (aux)
Mic Frequency Response 20Hz - 18kHz
Line Frequency Response 14Hz - 20kHz
Aux Frequency Response 10Hz - 23kHz
Mic Input Sensitivity -45dBV
Aux/Line Input Sensitivity -10dBV
Mic S/N Ratio 55dB
Aux/Line S/N Ratio 60dB
THD 0.05%
Power Supply 100-240Vac 50/60Hz (IEC) or 24VDC (terminals)
Fuse T1AL 250V (mains) or F500mA (24DC)
Phantom Power +48V (switchable)
Product Size (WxDxH) 482 x 132 x 45 mm
Product Weight 1.7 kg
Carton Size 565 x 210 x 74 mm
Carton Weight 1.9 kg
Website van de fabrikant: https://www.helviasystems.com/...
